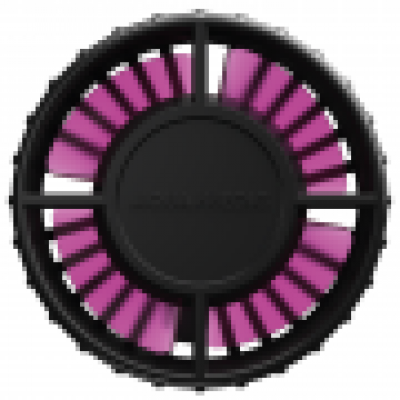

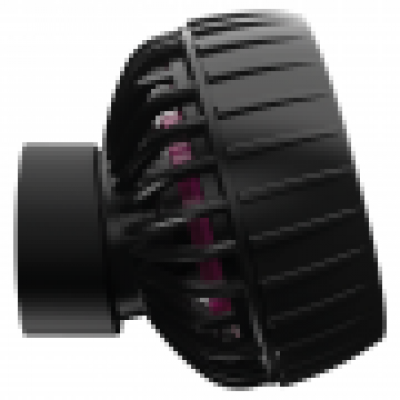

SmartDrift 7.1

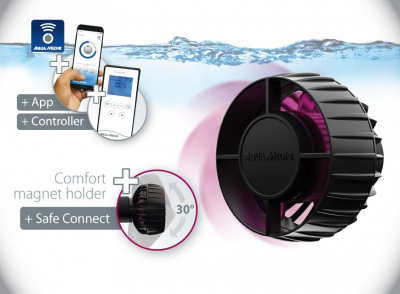

Compact „ULTRA SILENT“ current pump with App-control for adjusting the flow rate and wave frequency
Optimized control electronics
- control and programming via App (iTunes and Google Playstore) or manually via
the controller
- simultaneous control of several pumps possible
- multiprogramming of pumps via master-slave or cross-flow possible
- different flow patterns can be set
- new flow pattern due to innovative impeller technology ensures extreme smooth
running
- polished ceramic shaft and bearings for quiet operation and low maintenance
- power-saving D/C motor 24 V, high efficiency
- 0 - 10 V connection for external control options
- 24 V safety tension, incl. transformer 100 - 240 V / 50 - 60 Hz
Technical data:
| Typ | SmartDrift 3.1 | SmartDrift 7.1 | SmartDrift 11.1 |
| For aquaria up to | 300 l | 800 l | 1.500 l |
| Capacity adjustable | up to 4,600 l/h | up to 10,500 l/h | up to 16,000 l/h |
| Power consumption | 3 - 15 watts | 8 - 25 watts | 10 - 35 watts |
| Power supply pump | 24 V | ||
| Power supply transformer | 100 - 240 V / 50 - 60 Hz | ||
| Protection rating | IP X8 | ||
| Dimensions app. | ca. 55 mm, Ø 65 mm | ca. 65 mm, Ø 75 mm | ca. 70 mm, Ø 85 mm |
| Magnet holder for glass thickness up to | 10 mm | 12 mm | 15 mm |
Optional:
Extension cord
Extension cord 1.8 m, for cable extension between pump and controller. Please note: Only one extension cord per controller may be used. Never connect more than one extension cable to a controller as this may cause damage and void warranty.
MANUAL
For more information, please visit the home page for this product.
